The company is founded on the pursuit of ultimate detail, serving clients with high requirements for geometric and aesthetic precision. Leveraging rigorous quality standards, it holds a leading position in composite manufacturing technology and maintains the "Composite Design and Manufacturing for the Automotive Industry" certification. Combined with internal traceability processes, it guarantees high-quality technical and service support throughout all stages. Clients expect the delivery of ideal products. Any deviation can impact the aesthetic and functional integrity of a component. Our strict internal traceability processes ensure that clients receive high-quality professional expertise and continuous support at every step.
Core Pain Points: Limitations of Traditional Measurement Technologies
In high-precision component replication and complex surface acquisition, the company was long constrained by traditional 3D measurement and manual methods. Traditional methods were slow and lacked the precision required to accurately capture complex geometries and organic surfaces. Manual measurement was time-consuming and prone to errors, leading to material waste, high rework costs, compromised part aesthetics and fit, and project delays—failing to meet the precision and efficiency requirements of high-end manufacturing.
Solution: Introducing CREAFORM 3D Scanning Technology
Key requirements for the ideal 3D scanning solution were clearly defined, including: high accuracy and repeatability; fast 3D scanning speeds; portability for direct operation on vehicles; integration with reverse engineering software; reliable technical support; and an acceptable learning curve for the team.

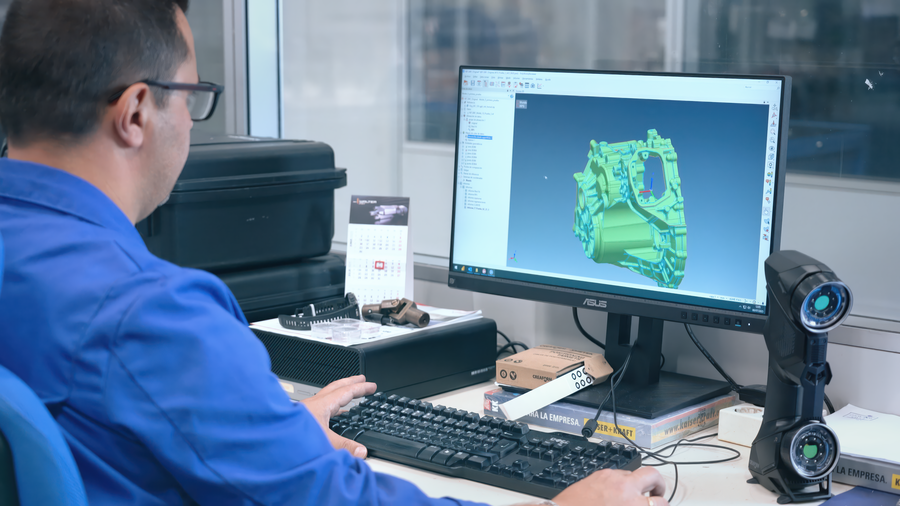

Based on these core needs for high precision, fast scanning, portability, software compatibility, and low learning costs, the company selected the HandySCAN 3D, a metrology-grade portable laser 3D scanner from Creaform, paired with the Scan-to-CAD and Inspection software modules of the Creaform Metrology Suite™ platform.
This solution offers accuracy up to 0.025 mm and is rugged enough for harsh workshop environments. The Scan-to-CAD module optimizes mesh data, cleans and aligns scans, and generates parametric solid models ready for export. It is compatible with the company's CAD systems, streamlining the workflow from scanning to 3D printing and reverse engineering. The Inspection module efficiently completes part verification and generates professional reports. With an intuitive interface and technical team support, the company implemented the equipment within a week and achieved proficient, high-efficiency usage within days.
Results: Comprehensive Improvements in Efficiency, Accuracy, and Value
The introduction of Creaform technology immediately revolutionized the company’s product development process, particularly in the critical project of replicating the side panels of a classic car model. By 3D scanning the original parts, the team quickly generated precise, high-resolution CAD models used to manufacture high-precision molds and final carbon fiber components. This not only ensured a perfect fit but also significantly reduced the risk of costly modifications.
The high precision of 3D scanning drastically reduced the number of mold iterations required, thereby accelerating the validation and production phases. From an economic perspective, the system demonstrated a high Return on Investment (ROI), paying for itself within the first year of use by saving time and reducing material waste.
Future Plans
The company will deepen the application of Creaform technology, expanding into large-scale projects such as full-vehicle scanning for custom aerodynamic kits, digital restoration of rare components, and automation of quality control processes. Relying on this technology to undertake more complex projects, the company will continue to raise the quality and performance standards of carbon fiber components and explore new opportunities in high-end manufacturing.
